Dependency Management

In the Getting Started section, we’ve already covered the basics of project structure and the role of the build.gradle(.kts) file. This section delves into how to connect a single module with its internal and external counterparts, essentially managing dependencies.

Incorporating Remote Dependencies (Classic Approach)

Typically, we use a two-level project structure, where:

• The root directory’s build.gradle.kts serves as the parent Project, defining buildscript{} for declaring dependencies and repositories (mainly Gradle plugins) and allprojects{ repository{} } for runtime dependency repositories. The following code is from the root build.gradle.kts of “kotlin-dsl-samples/samples/hello-android”@Kotlin:

// Top-level build file where you can add configuration options common to all sub-projects/modules.

buildscript {
    repositories {
        google()
        jcenter()
    }
    dependencies {
        classpath("com.android.tools.build:gradle:3.1.3")
        classpath(kotlin("gradle-plugin", version = "1.3.70"))

        // NOTE: Do not place your application dependencies here; they belong
        // in the individual module build.gradle.kts files
    }
}

allprojects {
    repositories {
        google()
        jcenter()
    }
}

• The specific module’s build.gradle.kts acts as a child Project, with dependencies generally for its own runtime/test scenarios:

dependencies {
    implementation(fileTree(mapOf("dir" to "libs", "include" to listOf("*.jar"))))
    implementation(kotlin("stdlib-jdk7", KotlinCompilerVersion.VERSION))
    implementation("com.android.support:appcompat-v7:27.1.1")
    debugImplementation("com.android.support.constraint:constraint-layout:1.1.0")
    testImplementation("junit:junit:4.12")
    androidTestImplementation("com.android.support.test:runner:1.0.2")
    androidTestImplementation("com.android.support.test.espresso:espresso-core:3.0.2")
}

Key configuration differences include:

1. Configurations like implementation, compileOnly, api are methods provided by AGP: Dependency configurations”@Android.
2. debugImplementation and similar are known as variant aware configurations, applied only when packaging for that variant: “Configure build variants”@Android.
3. testImplementation is for local unit testing (environment and testing method implied).
4. androidTestImplementation is for Android environment instrument tests (implies environment, could be unit or integration tests).
5. kotlin("stdlib-jdk7", ...) is a shortcut, ultimately resolving to org.jetbrains.kotlin:kotlin-stdlib-jdk7:xxx: “Kotlin-Gradle”@Kotlin.
6. KotlinCompilerVersion.VERSION is from buildSrc (or an included independent project): see buildSrc.

Incorporating Remote Dependencies (Modern Approach)

Gradle 6.x and 7.x introduced new APIs to replace the above dependency management APIs:

// https://github.com/2BAB/Seal/blob/3.1.0/settings.gradle.kts
pluginManagement {
    // The plugins block can be extracted to root's build.gradle.kts as well,
    // you can see that new Android Studio (2021+) already did these for you
    // when you created a new project using it.
    plugins {
        kotlin("android") version "1.5.31" apply false
        id("com.android.application") version "7.0.4" apply false
        id("com.android.library") version "7.0.4" apply false
    }
    resolutionStrategy {
        eachPlugin {
            if(requested.id.id == "me.2bab.seal") {
                useModule("me.2bab:seal:+")
            }
        }
    }
    repositories {
        mavenCentral()
        google()
        gradlePluginPortal()
        mavenLocal()
    }
}

dependencyResolutionManagement {
    repositories {
        google()
        mavenCentral()
        mavenLocal()
    }
    versionCatalogs {
        create("deps") {
            from(files("./deps.versions.toml"))
        }
    }
}

Key changes:

1. buildscript is replaced by pluginManagement, with dependencies directly replaced by plugins.
2. resolutionStrategy is used for specific coordinates when needed, primarily for dependency conflict resolution.
3. allprojects{ repositories{} } is replaced by dependencyResolutionManagement { repositories{} }, and versionCatalogs is a new API for shared dependencies across modules/projects. See the custom .toml file example below:

// https://github.com/2BAB/Seal/blob/3.1.0/deps.versions.toml
[versions]
kotlinVer = "1.5.31"
agpVer = "7.0.3"
polyfillVer = "0.4.0"
mockitoVer = "3.9.0"

[libraries]
android-gradle-plugin = { module = "com.android.tools.build:gradle", version.ref = "agpVer" }
kotlin-std = { module = "org.jetbrains.kotlin:kotlin-stdlib-jdk8", version.ref = "kotlinVer" }
kotlin-serialization = { module = "org.jetbrains.kotlinx:kotlinx-serialization-core-jvm", version = "1.3.1" }
polyfill-main = { module = "me.2bab:polyfill", version.ref = "polyfillVer" }
polyfill-manifest = { module = "me.2bab:polyfill-manifest", version.ref = "polyfillVer" }
fastJson = { module = "com.alibaba:fastjson", version = "1.2.73" }
zip4j = { module = "net.lingala.zip4j:zip4j", version = "2.6.2" }
junit = { module = "junit:junit", version = "4.12" }
mockito = { module = "org.mockito:mockito-core", version.ref = "mockitoVer" }
mockitoInline = { module = "org.mockito:mockito-inline", version.ref = "mockitoVer" }

[bundles]

[plugins]

Gradle automatically generates dependency declarations with the same name as the file in the Sync phase. These declarations, such as deps.xxx, make it easy to quickly add dependencies to multiple modules. Here is how it’s used in modules:

// https://github.com/2BAB/Seal/blob/3.1.0/seal/plugin/build.gradle.kts
dependencies {
    implementation(deps.polyfill.main)
    implementation(deps.polyfill.manifest)

    implementation(gradleApi())
    implementation(deps.kotlin.std)
    implementation(deps.kotlin.serialization)

    compileOnly(deps.android.gradle.plugin)

    testImplementation(gradleTestKit())
    testImplementation(deps.junit)
    testImplementation(deps.mockito)
    testImplementation(deps.mockitoInline)
    testImplementation(deps.fastJson)
    testImplementation(deps.zip4j)
}

Refer to these documents/articles for a complete overview:

1. “Plugin Management”@Gradle
2. “Sharing dependency versions between projects”@Gradle
3. “It’s time to ditch the buildscript block”@Stefan M.

Incorporating Local Modules (Classic Approach)

For projects with multiple modules, organize the structure as per:

• “Structuring and Building a Software Component with Gradle”@Gradle

Modules depend on each other using implementation(project(":$modulePath")). Gradle uses “:” as the file path separator, so deep module references need full paths: project(":commons:utils:b").

Incorporating Local Modules (Modern Approach)

Besides standard project(":test-library"), Gradle introduced TypeSafe Project Accessor, currently in preview. Enable it in settings.gradle.kts:

enableFeaturePreview("TYPESAFE_PROJECT_ACCESSORS")

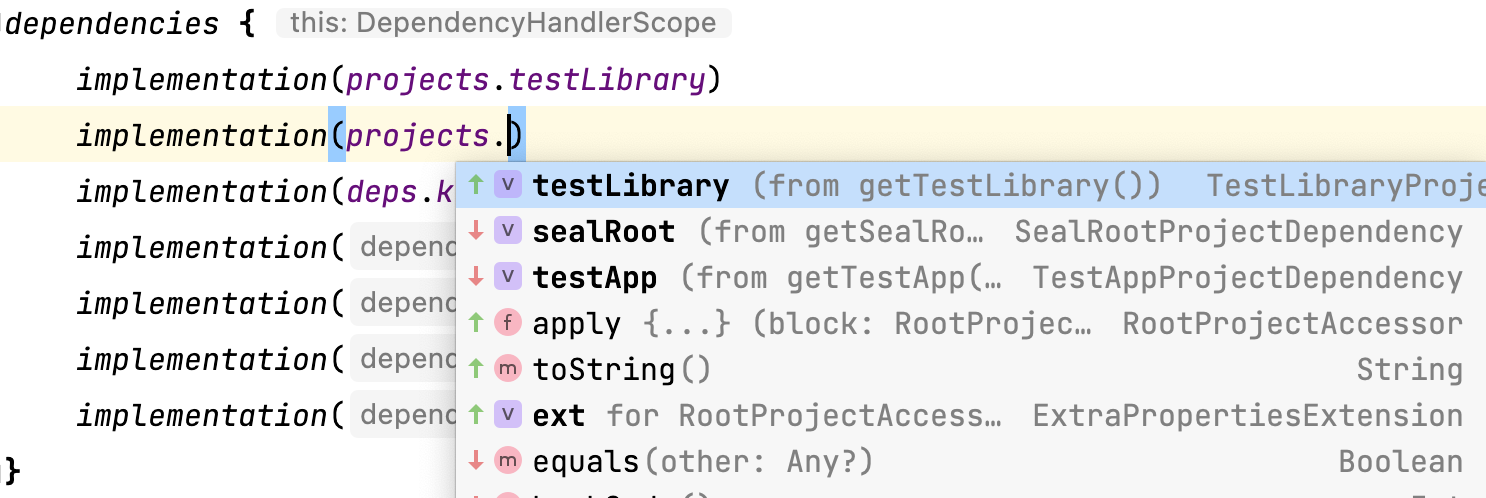

This generates accessors for all modules in the project. For example, referencing a module named “test-library” in the app module:

implementation(projects.testLibrary)

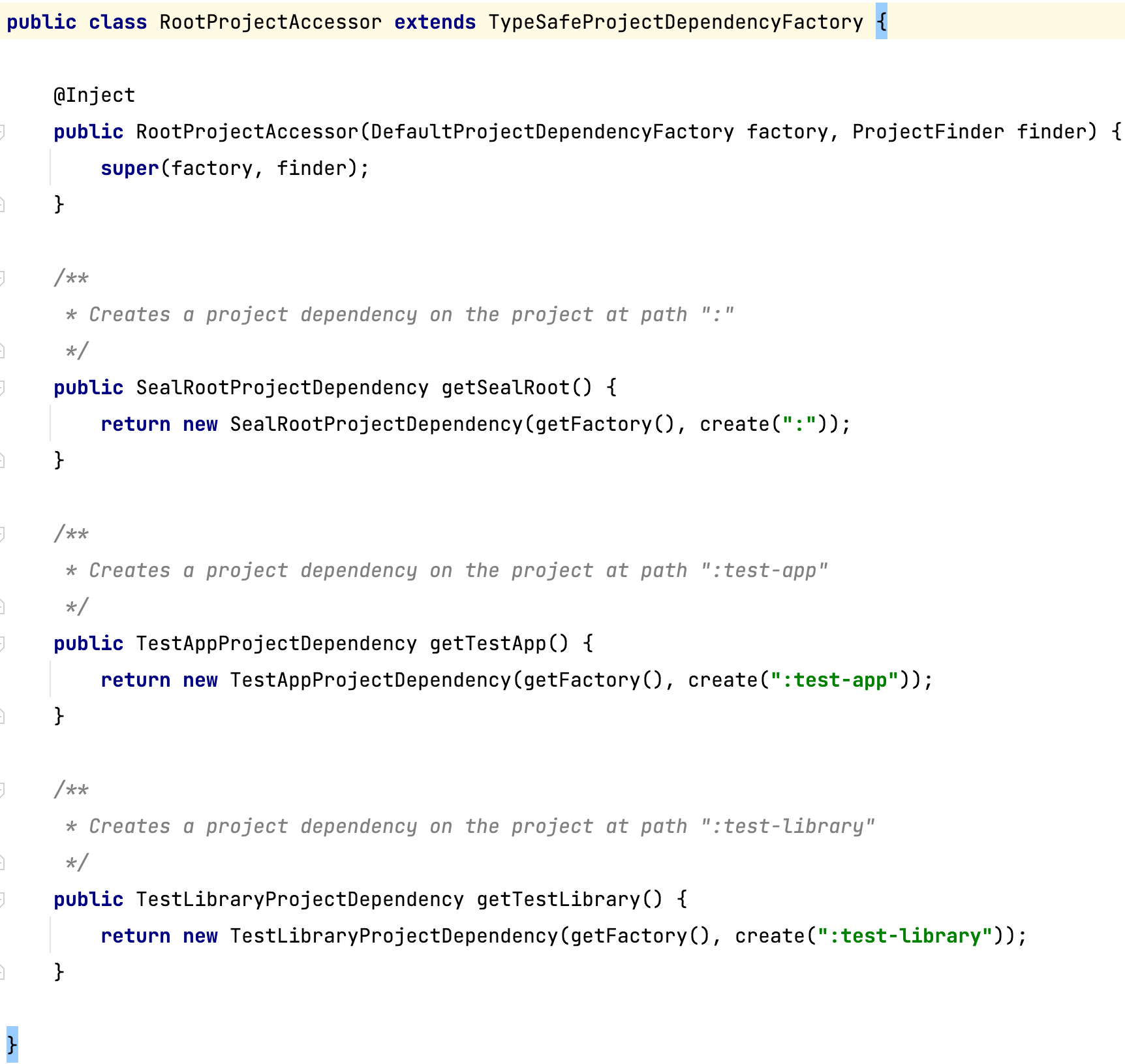

The generated helper class:

• “TypeSafe Project Accessor Official Introduction”@Gradle
• “Using type-safe project dependencies on Gradle”@Igor Escodro

Incorporating Local AARs (Optimal Approach)

The best approach is to create an empty Gradle module and add two lines to build.gradle.kts for the local .aar.

• “Put your AAR into a separate module.”@JRod

configurations.maybeCreate("default")
artifacts.add("default", file('spotify-app-remote-release-0.7.1.aar'))

Summary

This section introduced several practical dependency management APIs. For a deeper understanding of Dependency containers, custom references, etc., consult the official documentation:

• “Declaring dependencies”@Gradle
